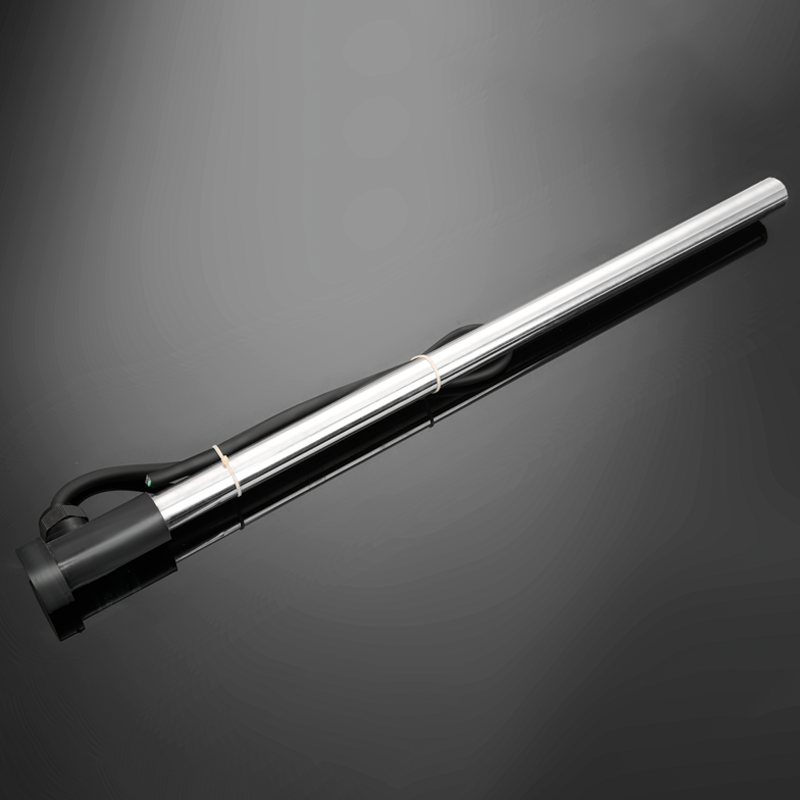

Titanium Heating Tube

Corrosion-Resistant Heating Solution for Chemical Liquids

Overview

The Titanium Heating Tube is designed for highly corrosive environments such as electroplating tanks, chemical reactors, and electrolytic baths. Its titanium alloy sheath with a naturally formed oxide film provides excellent resistance to acids, alkalis, and chloride-rich liquids. Combined with precision-wound heating coils and high-density magnesium oxide insulation, it ensures fast, uniform heating and stable long-term performance.

Customize Your Solution

Looking for a heating band tailored to your equipment?
We offer full customization in size, shape, and specifications to match your exact needs.

Key Advantages

Superior Corrosion Resistance

Performs reliably in acidic, alkaline, and electroplating environments.

High Thermal Efficiency

Heat transfer efficiency ≥ 95%, enabling rapid temperature rise.

Safe & Durable

Supports dry-burn design for enhanced service life and safety.

Customizable Design

Available in multiple lengths, power ratings, and mounting options.

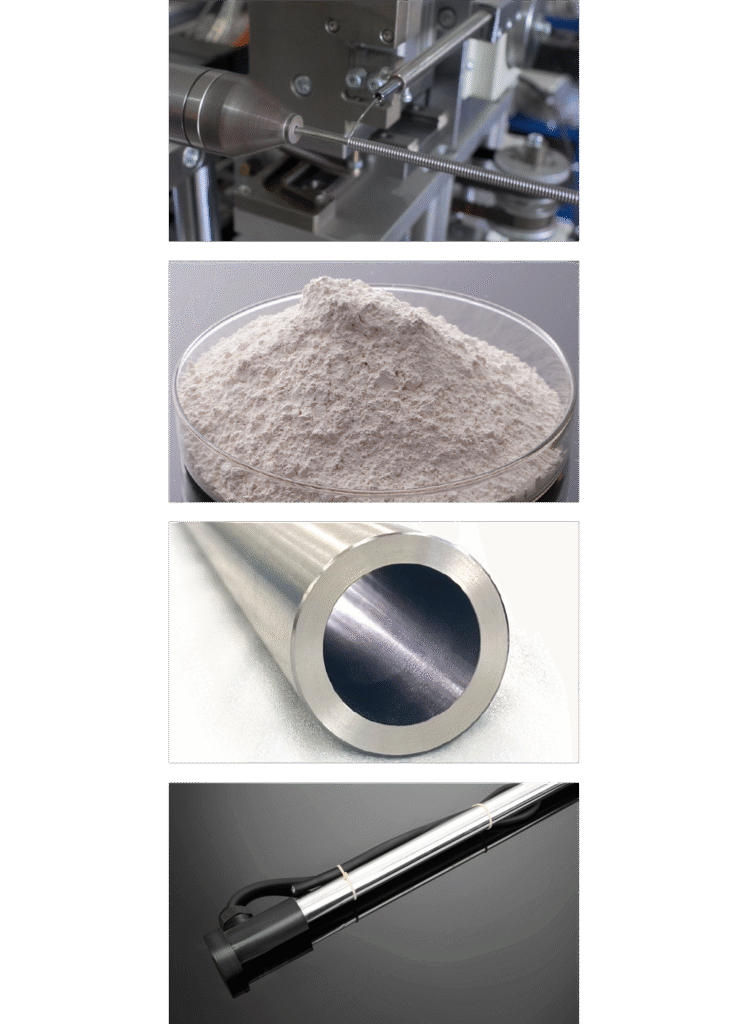

Technology & Build Quality

  • Titanium Alloy Sheath
    Naturally oxidized surface layer for exceptional corrosion resistance.
  • Precision Heating Coli
    Evenly wound nickel-chrome or custom alloy wire ensures consistent heating.

  • High-Density Insulation
    Magnesium oxide filling offers excellent thermal conductivity and dielectric strength.

  • Rugged Construction
    Spiral winding, compaction, and sealing processes deliver stable, long-lasting performance.

  •  Dry-Burn Safety
    Optional dry-fire protection design for maximum operational safety.

Key Specifications

Voltage Range: 110V–440V (customizable)


Power Density: 5–7 W/cm²


Operating Temperature: Ambient to 60 °C


Sheath Material: Titanium Alloy

Insulation: High-Density Magnesium Oxide


Mounting Options: Flange, Threaded, or Immersion Type


Applications: Electroplating tanks, electrolytic baths, weak acid solutions, chemical reactors
